DZB-A-022

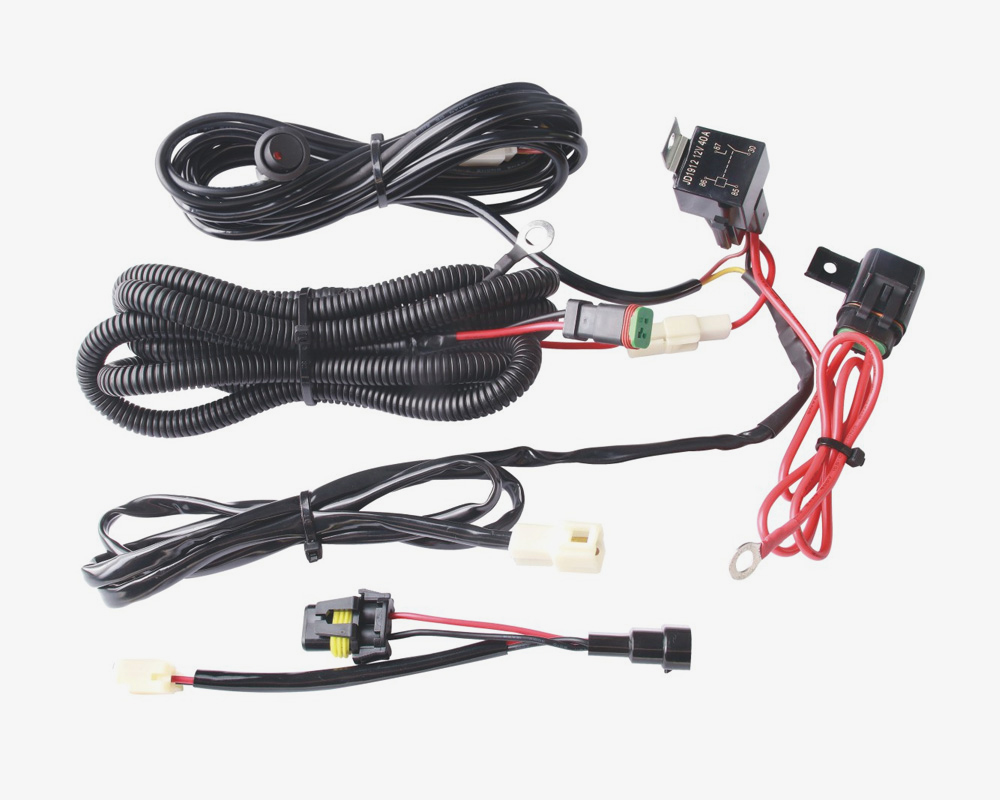

• Australian special car LED light wire harness•
• The wire harness is designed in accordance with Australian laws and regulations. The special H4 and H16 plugs are connected to the original car light plug. When the originacar light is turned on, the line group can control the installed lights.
• The special plug is connected with the original car light, and the original car wire is not damaged by trimming.
• The special plug is connected with the original car light, and it is not necessary to dividethe positive electrode and the negative electrode, and the versatility is stronger.
• Wire used PVC insulation shuck, temperature resistance 105'℃, withstand voltage 600V
• PVC insulated wire with anti-alkali, oil resistance, mould proof, environmental protection inflaming retarding and other characteristics
• Wire conductoruses multi-strand copper wire

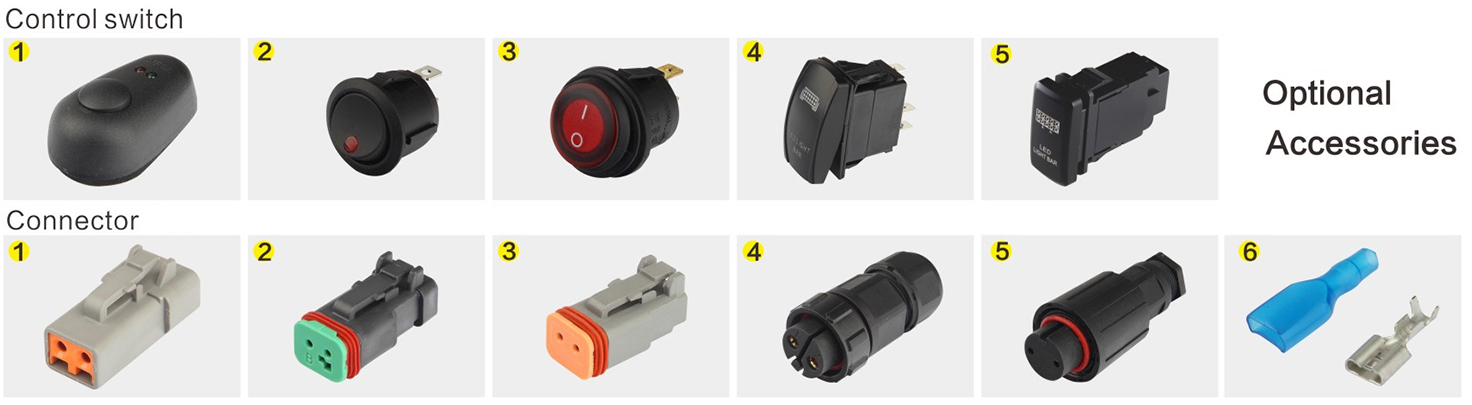

Item NO. Material of wireshuck Inputlne Inputlne coppercore Beclonalarea Output line Length of output Ine Output lne coppercore sectlonalarea Voltage Connector Control switch Length control switch Relay(60A/40A) Fuse Power
DZB-A-022-001 PVC 12# 3 12# 3M 3 12/24 ①②③④⑤⑥ ①②③④⑤ 3M 40A(12V/24V) 30A ≤320W
DZB-A-022-002 PVC 12# 3 12# 2.5M 3 12/24 ①②③④⑤⑥ ①②③④⑤ 3M 40A(12V/24V) 30A ≤320W
DZB-A-022-003 PVC 12# 3 12# 2M 3 12/24 ①②③④⑤⑥ ①②③④⑤ 3M 40A(12V/24V) 30A ≤320W
DZB-A-022-004 PVC 14# 2 14# 3M 2 12/24 ①②③④⑤⑥ ①②③④⑤ 3M 40A(12V/24V) 25A ≤240W
DZB-A-022-005 PVC 14# 2 14# 2.5M 2 12/24 ①②③④⑤⑥ ①②③④⑤ 3M 40A(12V/24V) 25A ≤240W
DZB-A-022-006 PVC 14# 2 14# 2M 2 12/24 ①②③④⑤⑥ ①②③④⑤ 3M 40A(12V/24V) 25A ≤240W
DZB-A-022-007 PVC 16# 1.3 16# 3M 1.3 12/24 ①②③④⑤⑥ ①②③④⑤ 3M 40A(12V/24V) 15A ≤160W
DZB-A-022-008 PVC 16# 1.3 16# 2.5M 1.3 12/24 ①②③④⑤⑥ ①②③④⑤ 3M 40A(12V/24V) 15A ≤160W
DZB-A-022-009 PVC 16# 1.3 16# 2M 1.3 12/24 ①②③④⑤⑥ ①②③④⑤ 3M 40A(12V/24V) 15A ≤160W
DZB-A-022-010 PVC 18# 0.65 18# 3M 0.65 12/24 ①②③④⑤⑥ ①②③④⑤ 3M 40A(12V/24V) 10A ≤80W
DZB-A-022-011 PVC 18# 0.65 18# 2.5M 0.65 12/24 ①②③④⑤⑥ ①②③④⑤ 3M 40A(12V/24V) 10A ≤80W
DZB-A-022-012 PVC 18# 0.65 18# 2M 0.65 12/24 ①②③④⑤⑥ ①②③④⑥ 3M 40A(12V/24V) 10A ≤80W
